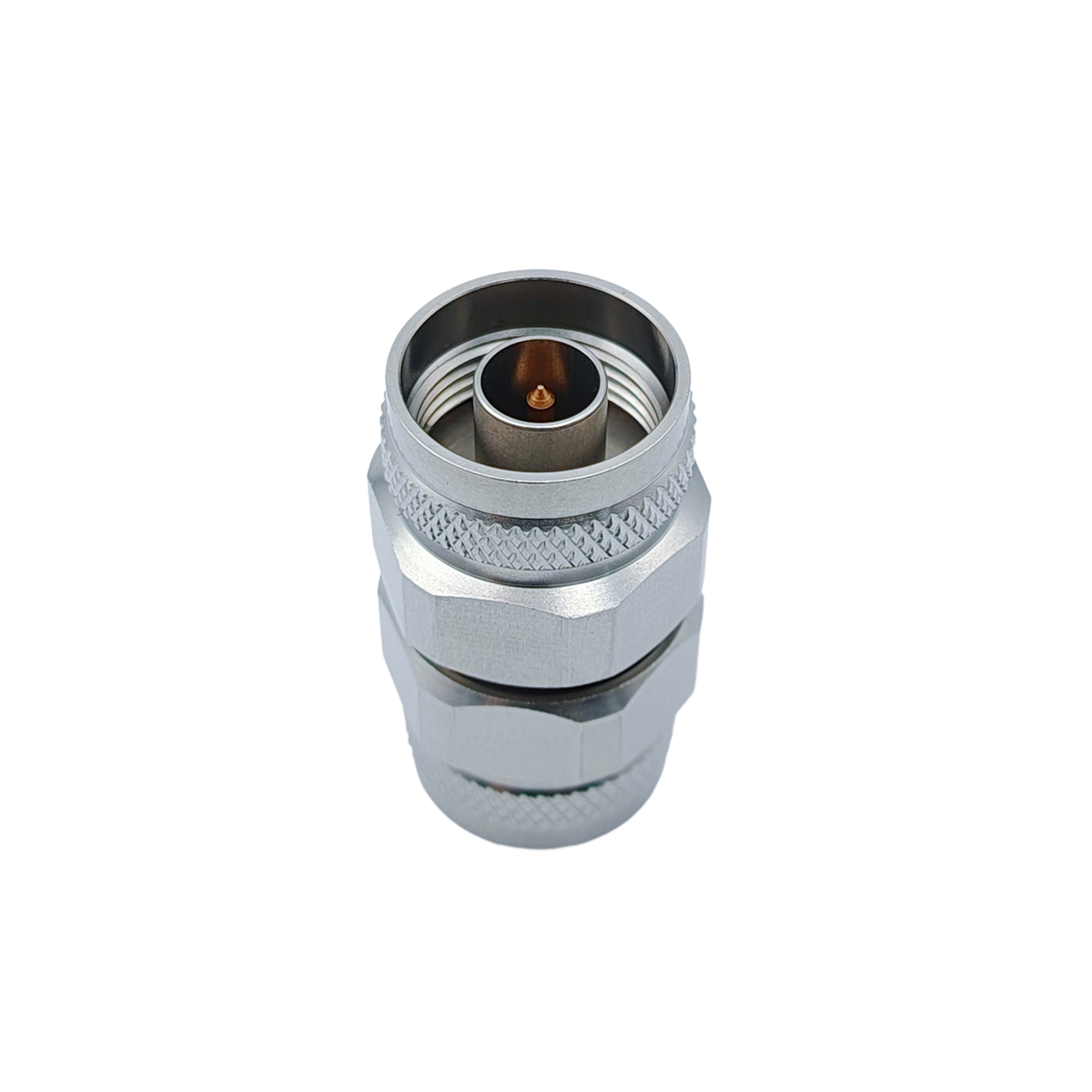

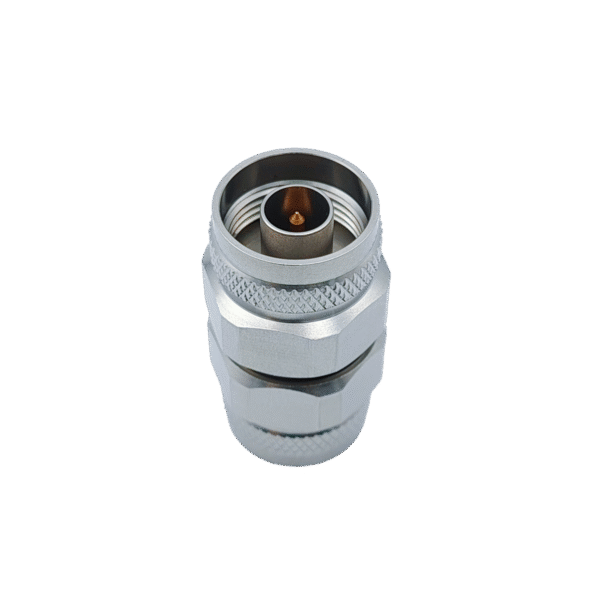

N – N adapter

$99.00

1.RF Coaxial Cable Assembly 18GHz L73P1-SMM0SMM0-1000
2.Low Loss stable phase
3.Superior Shielding Effectiveness/flexibility

分类: ,

描述

  1. RF Coaxial Cable Assembly 18GHz L73P1-SMM0SMM0-1000
    2. Low Loss stable phase
    3. Superior Shielding Effectiveness/flexibility

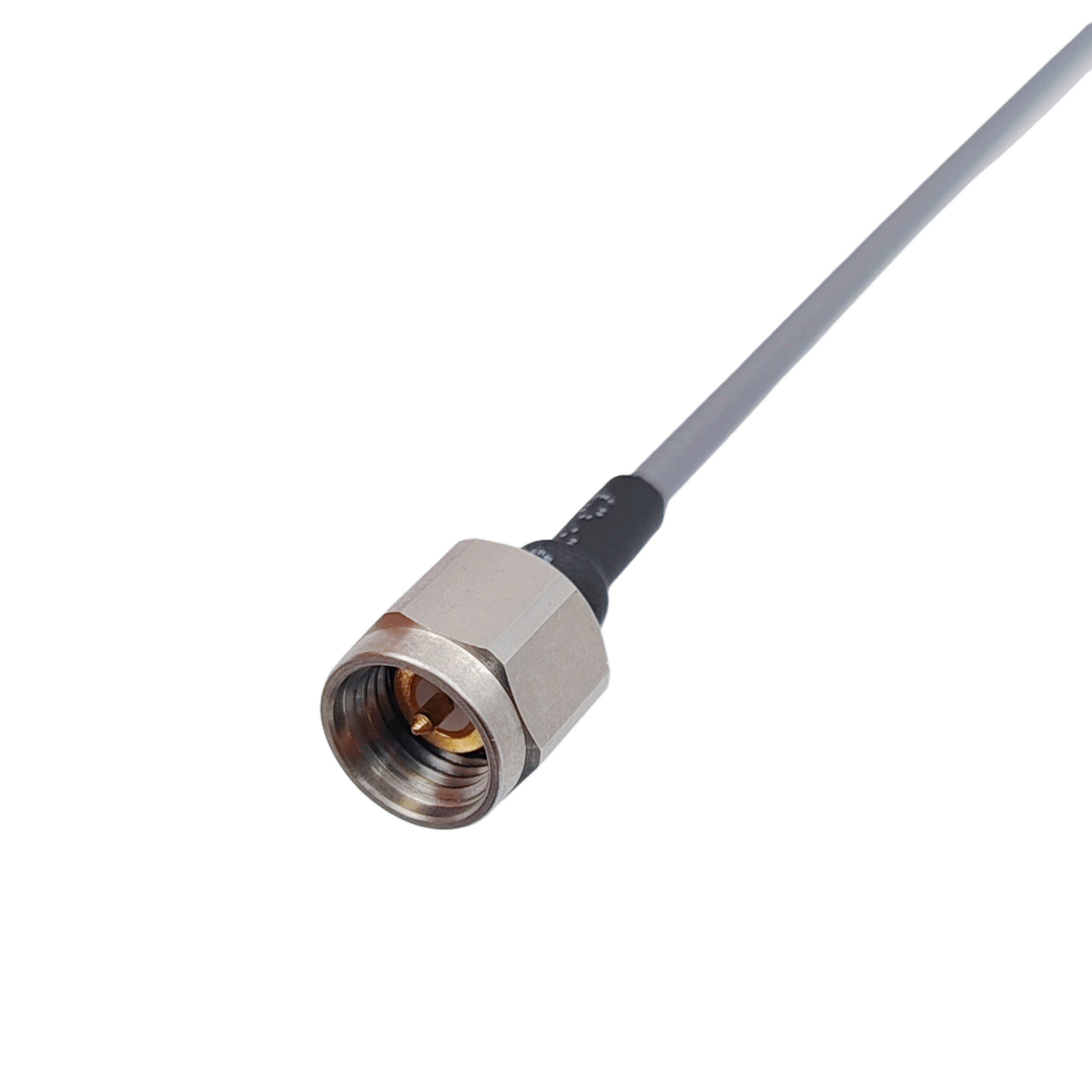

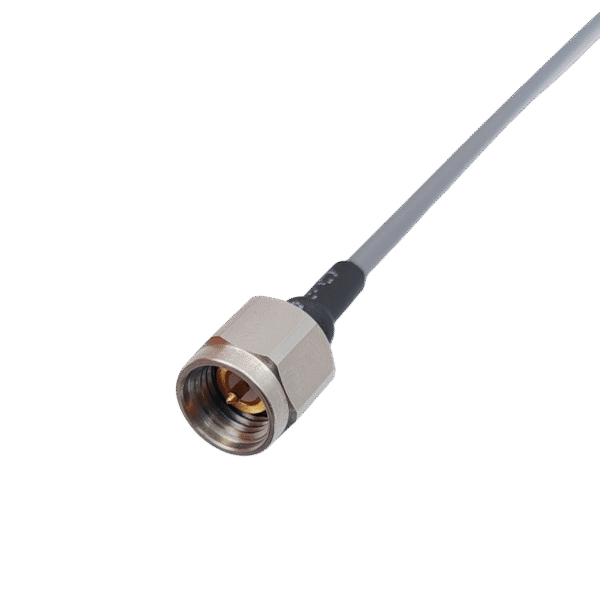

    SMA Male Straight to SMA Male Straight with 7.9mm Flexible Cable 18GHz

—————- L73P1-SMM0SMM0-1000 RF Coaxial Cable Assembly ——————

 Key performance:

Cable Type 73P1
Operating Frequency(GHz) 18
Impedance (Ohm) 50
Jacket Diameter(mm) 7.9
Insulation Materials LD PTFE
Minimum Static Bend Radius(mm) 76
Phase Change vs Temperature(-55°C~+85°C)(PPM) 1200PPM
Shielding(dB@1GHz) ≥90
Operating Temp(°C) -55~+125

Attenuation and Power Handling Capability of Cable  vs Frequency:

Frequency(GHz) Attenuation(dB/m) Power Handing(W)
1 0.23 1200
18 0.78 387
